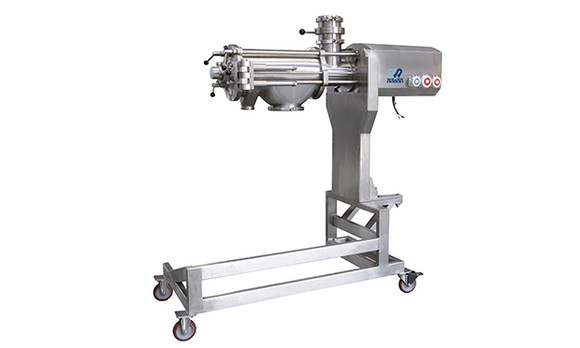

Single-shaft Centrifugal Sifter

Product Introduction

Working Process:
The materials are quantatively fed into the feed inlet of the centrifugal sifter. The conveying screw takes the materials to the centrifugal chamber. The materials are sieved and filtered by the air flow generated by rotating blades. The qualified materials are discharged into the storage bin, while the oversized particles are discharged from the other outlet port and collected for further processing.
There is a baffle on the top of the chamber to prevent the qualified materialsfrom going to the outlet port for the unqualified materials.
The screen mesh of centrifugal sifter has certain ductility, which makes the screen mesh vibrate with the air flow and thus the materials will not silt on the surface of the screen mesh,therefore sieving capacity without lowering can be assured.

Features:
Robust structure, superior performance;
Standard design, matching with other mills;
Selective storage;
The front door can be disassembled with spanner;
Airtight design, avoiding the contamination;
The knife model can be chosen according to the material properties;
Material contact part made ofAISI-316L or 304.
