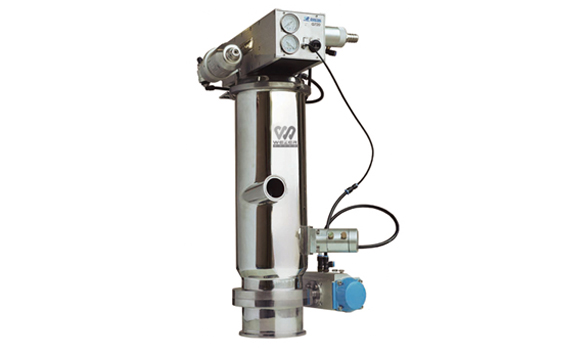

Vacuum Conveyor
【Product Name】:
Vacuum Conveyor
【Specification】:
WP180 / 250 / 320 / 430 / 560
【Applications】:
It’s used for the conveying of pharmaceutical, food, energy, chemical, rubber and plastic materials.
Product Introduction
Working Process:
(a)The vacuum pump generates vacuum through the separate container in the vacuum conveying equipment. The materials are sucked from the feeding point through the suction hose and suction inlet.
(b)The air and materials are separated in the filtering bin of the separating tank, and the materials are collected in the bin. The cyclone stops the fine powder from going into the filter, so that the filter efficiency can be improved.
(c)When the bins full of materials, the vacuum pump will automatically switch off and the pressure inside the vacuum conveyor will be balanced. The discharging valve is opened, and the separated materials will be discharged from the discharging port, and directly drop into the storage container.
(d)During the discharging process, the filtering bin is automatically cleaned by the blowback airbag. The special vibrator or fluidized device is also available to improve the working process for sticky and highly bridging bulk materials.
(e)The discharging bin is closed after discharging and a new conveying process starts again.
Application:
Pharmaceutical: Calculus bovis powder, tablet of cow bezoar, Ampicillin powder , calcium carbonate powder, traditional Chinese medicine pure extract powder, VC Honeysuckle Pills, cephalexin powder, Vitamin raw material, paracetamol powder, Albendazole powder, Avandia powder, garlic powder, barium sulfate, sodium chloride, fibre powder, sodium carbonate powder, vegetable drug powder, pearl powder, Colistin Sulfate, cathartic……
Food: flavoring, baking additives, dry baking powder, cocoa powder, crystalline glucose, curry powder, juice powder, lactose, pepper powder, starch, yeast, coffee bean, milk powder, tea, gum raw materials……
Chemical: activated carbon powder, alumina, aluminum hydroxide, phosphorus pentasulfide, zinc stearate, filter cake, cyanide sodium, bentonite, calcium carbonate, diatomaceous earth, sodium hydroxide , ash, silicone carbon, silica, sodium nitrate, Dicyandiamide powder, zeolite……
Pigments and coatings: fuel powder, epoxy resin, acrylate copolymer, titanium dioxide, toner powder, PTFE powder……
Plastics: PE particles, polystyrene particles, polyurethane particles, rubber particles, ethane particles/ propene particles……
Metal powder: aluminum powder, iron powder, magnesium powder, tungsten powder, cobalt powder……
Other: clinker cement, casting auxiliary materials, welding powder, quartz particle, sand grains, grain seeds……
