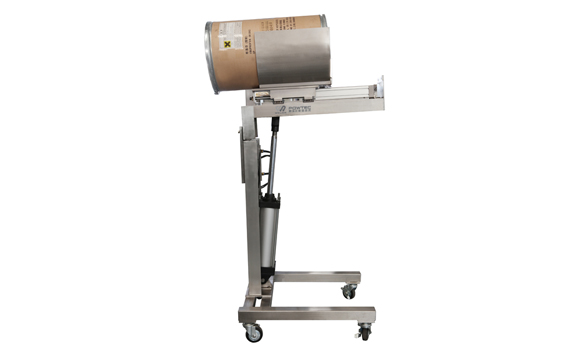

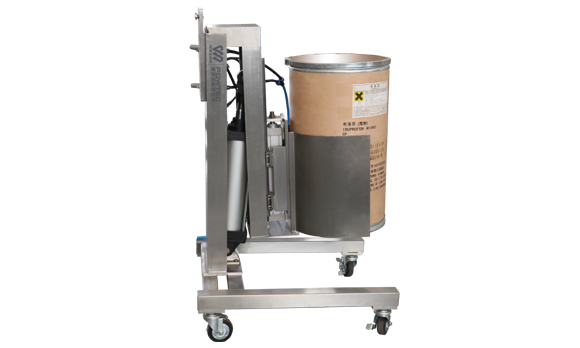

Drum Lifter
【Product Name】:
Drum Lifter
【Specification】:
WSL-1
【Applications】：
Product introduction
A transferring equipment is designed to ensure that the operator will not contact the drum during transferring and discharging process to prevent the operator from highly toxic or easily contaminated materials. Especially when charging throughthe glove box or isolator, the drum should be horizontally placed, which will cause much trouble for manual discharging. The turnover drum lifter can directly lift and turn over the drum to the designated position.
Technical Parameters:
Control: pneumatic or hydraulic
Power: compressed air（≥0.5MPa）or 3 phases, 380V
Work height: 1665mm
Load capacity: 50Kg
Distance between the drum and ground: 300mm
Horizontal distance K: 300mm
Drum diameter D: 400mm
Drum height F: 380mm
Lifter length L: 800mm
Lifter width W: 670mm
